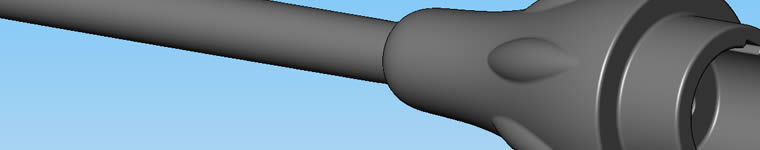

During the 2009 University of Washington Business Plan Competition I was competing with a technology that is able to measure the oxygen saturation of muscle tissue continuously and noninvasively. At the time of the BPC our technology was only working as a lab grade device; in order to better demonstrate what the technology would look like as a commercial device, I decided to create a mockup using SolidWorks. Below is an image of the display unit next to an image of the disposable probe model in SolidWorks.

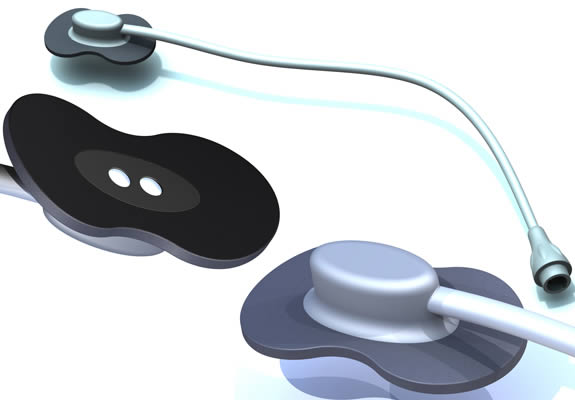

Below is a photorealistic image of the disposable probe that was used during the Investment Round of the BPC.

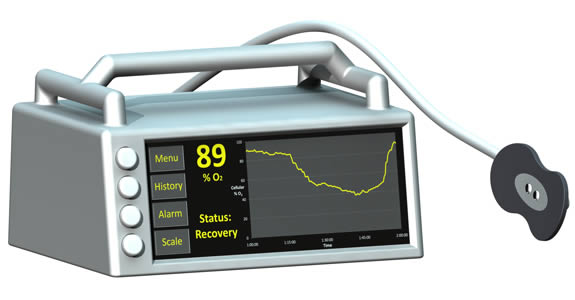

Below is a photorealistic image of the display unit with a disposable probe. The display unit has an image placed over the display portion of the model to simulate what the device could look like while in use.
